SPECIFICATIONS
Knocking down obstacles, destroying limits, we all want to reach our objectives and overcome them. With the Kendo, you will always feel ready to enjoy that route you have been wanting to enjoy.
A high technology frame designed with our G2 philosophy, with triple crowned tubes 6066 T6, attaining optimum balance between light weight, rigidity and comfort.
Completing the combo, top-line equipment that makes the Kendo devour paths, trails and ascents. The Kendo is the best balanced choice.

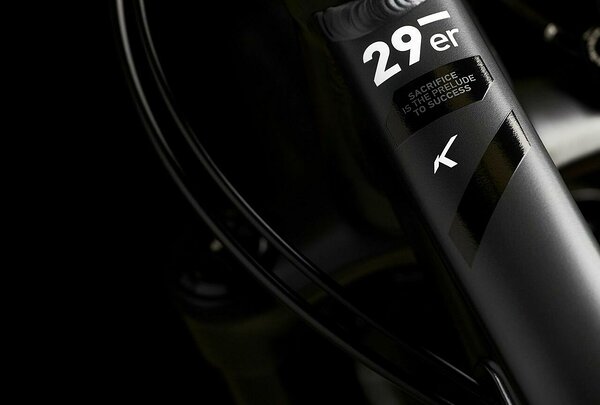

FRAME Aluminium 6061-T6 triple hydroformed crowned. AC Lite frame, Stable & Performance Design, 1.5 Head Tube, Press Fit, Optimized Cable Routing, Post Mount, Boost.

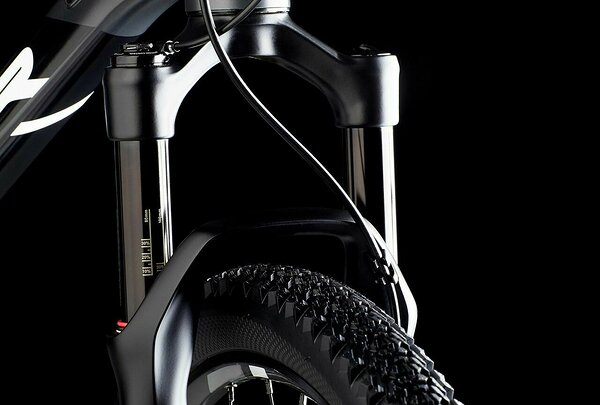

FORK Rock Shox Recon RL Air 15 Boost. Travel 100 mm. Fast Black. One Lock Remote. Motion Control. Tapered
HEADSET Ritchey Logic - Press Fit tapered
SHIFTER Sram GX Eagle 12V
SHIFTERS Sram GX Eagle
BRAKES Shimano MT-200 160/160
CRANKSET Sram XT Alloy Eagle DUB 34
CASSETTE Sram GX Eagle XG-1275 10-50
CHAIN Sram NX Eagle
WHEELS XCR 9800 DW 29 15-12 Boost XD. Aluminum 6063 Double Wall
TIRES Hutchinson Cobra 29x2 10
STEM Ritchey Comp - 4 AXIS
HANDLEBAR Ritchey Comp Recto 2X 720 mm

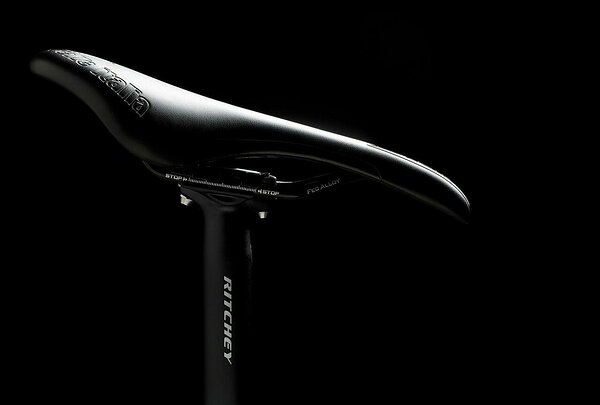

SEAT POST Ritchey Comp Zero 31.6mm
SADDLE San Marco Monza Wide
GRIPS MMR double density ultragrip
GEOMETRY AND SIZES
G2 PERFORMANCE GEOMETRIES
The morphological and ergonomic studies are the base of the design of our geometries. On the G2, we are looking for a position which helps the cyclist to be competitive and comfortable at the same time.
Applied on the Miracle model, the High-Performance Geometry allows you to be competitive on the Gran Fondo that you have trained for or to arrive home strong after a long day with your bike.
| S | M | L | XL | |
| L WHEEL BASE(A) | 1080 | 1098 | 1114 | 1135 |
| L EFFECTIVE TOP TUBE(B) | 560 | 573 | 588 | 607 |
| L VIRTUAL TUBE(C) | 575 | 595 | 615 | 635 |
| L HEADTUBE LENGHT(D) | 95 | 105 | 115 | 130 |
| L SEAT TUBE(E) | 345 | 382 | 433 | 483 |
| L CENTRE TO TOP(F) | 395 | 432 | 483 | 533 |
| L VIRTUAL SEAT TUBE | 629 | 644 | 655 | 670 |
| L CHAINSTAY LENGHT(G) | 440 | 440 | 440 | 440 |
| L ADVANCE(H) | 51 | 51 | 51 | 51 |
| H BOTTOM BRACKET(I) | 55 | 60 | 60 | 60 |
| SS HEAT TUBE ANGLE(J | 71º | 71º | 71º | 71º |
| SS SEAT TUBE ANGLE(K | 74º | 74º | 73,5º | 73,5º |
| REACH(L) | 400 | 415 | 428 | 444 |
| STACK(M) | 604 | 618 | 628 | 642 |
| TRAIL(N) | 75,5 | 75,5 | 75,5 | 75,5 |
